MOTION SENSOR KIT
Additional Information

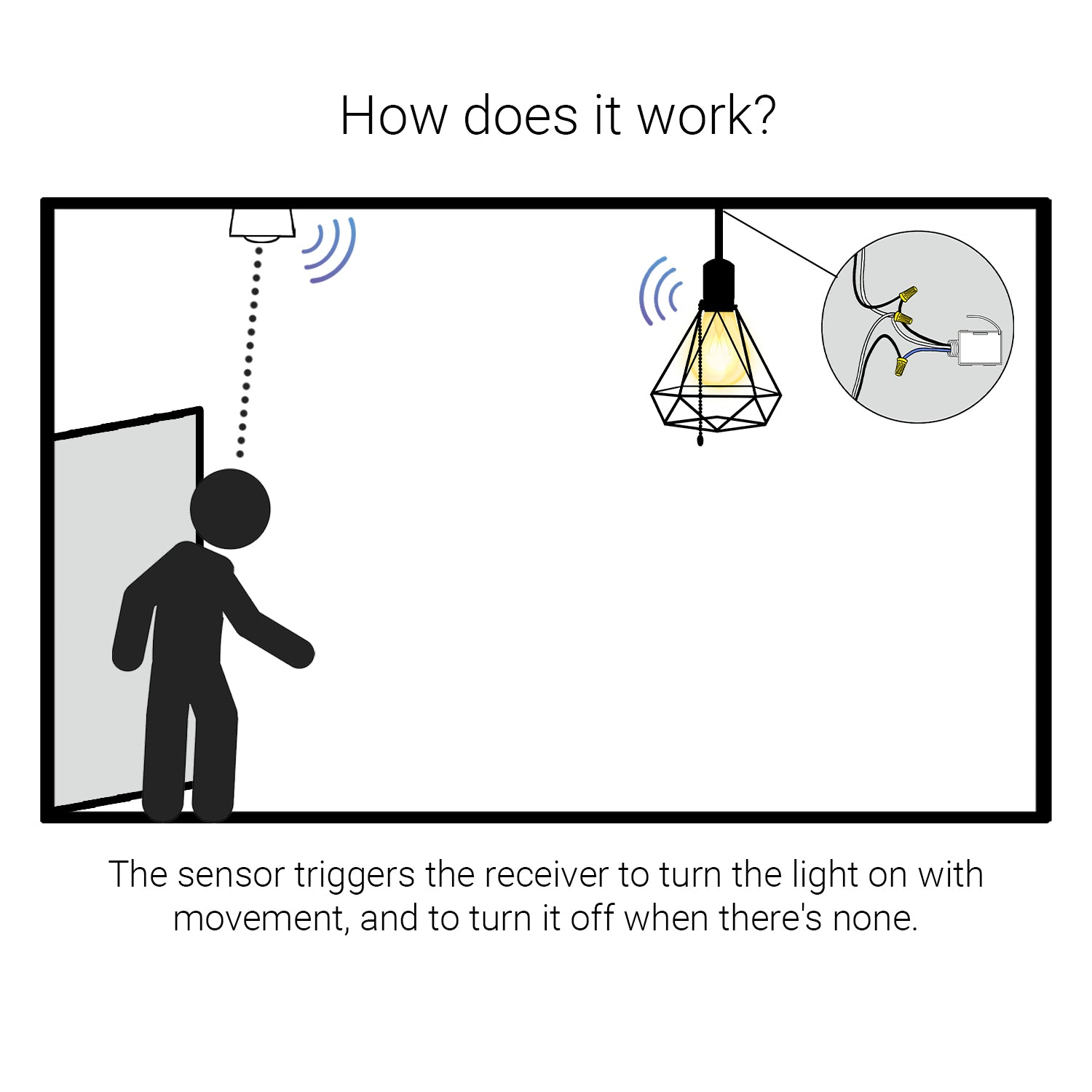

Each kit comes with everything you need. The receiver and motion sensor are pre-connected for each kit. Also includes mounting accessories, screws, and command strips.
Install & SettingsRETURN POLICY
If you are not 100% satisfied with your purchase, you can return the product and get a full refund or exchange the product for another one, be it similar or not. You can return a product for up to 30 days from the date you purchased it. Any product you return must be in the same condition you received it and in the original packaging.
WARRANTY
This product is warranted against defects in materials and manufacturing under normal use in accordance with instructions and specifications published by RunLessWire, for a period of five (5) years from the date of purchase by the End User. In the event of a product failure due to materials or workmanship, RunLessWire will repair or replace the defective product. For warranty service, contact RunLessWire for a Return Authorization and return the defective product, shipping prepaid, for prompt repair or replacement.
SHIPPING
RunLessWire ships Monday through Friday excluding holidays. The shipping cut-off time is 2pm MST. Orders placed after 2pm MST will be processed the next business day. Shipping is via USPS First class or Priority mail depending on the quantity. Typical delivery times are 3-5 business days from date of order. Shipping price and delivery time will vary on international orders.
MOTION SENSOR SPECS
Power supply: battery CR123A 3V
Lifetime: 5 years
Radio frequency: 902 MHz
RF power Max: +3dBm
Wireless range: Up to 30 meters
Detection range: Up to 5 meters
Lux sensing: 0 to 1000Lux
Operational temperature: -10°C / 45°C
EEP (Profil EnOcean®): A5-07-03
Dimensions: 65 mm (l) x 65 mm (L) x 39 mm (h)
Weight: 54 g
5 AMP RECEIVER SPECS
Supply Voltage — 100-277 VAC 50/60 Hz
Max Load — 5A all loads, Induction, Fluorescent, LED, Other ; 70A Max Inrush Current ; 1/4HP
RF Communication — 902 MHz EnOcean® Protocol
Transmission Range — 50-150 feet (typical)
Dimensions — 2.61 x 1.73 x 1.09 inches ; (66 x 44 x 28mm)
Operating Temperature — +32º to +122ºF ; (0 to +50ºC)
Storage Temperature — -4° to +176°F ; (-20° to +80°C)
Approvals — UL 60730 (safety) UL 2043 (plenum)
CSA c22.2#14-05 (safety) CE – IEC 60730
FCC ID: SZV-STM300U
IC ID: 5713A-STM300U
