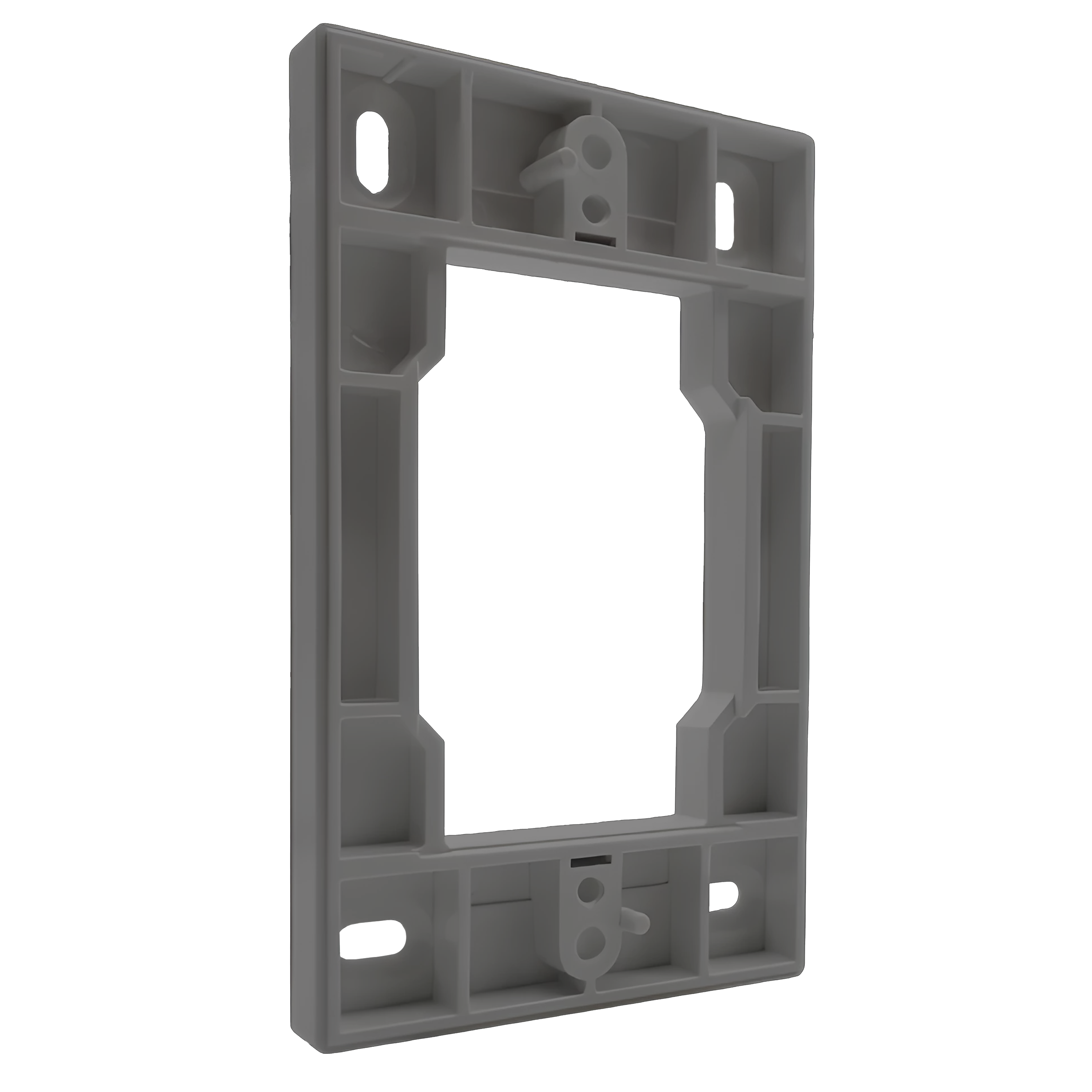

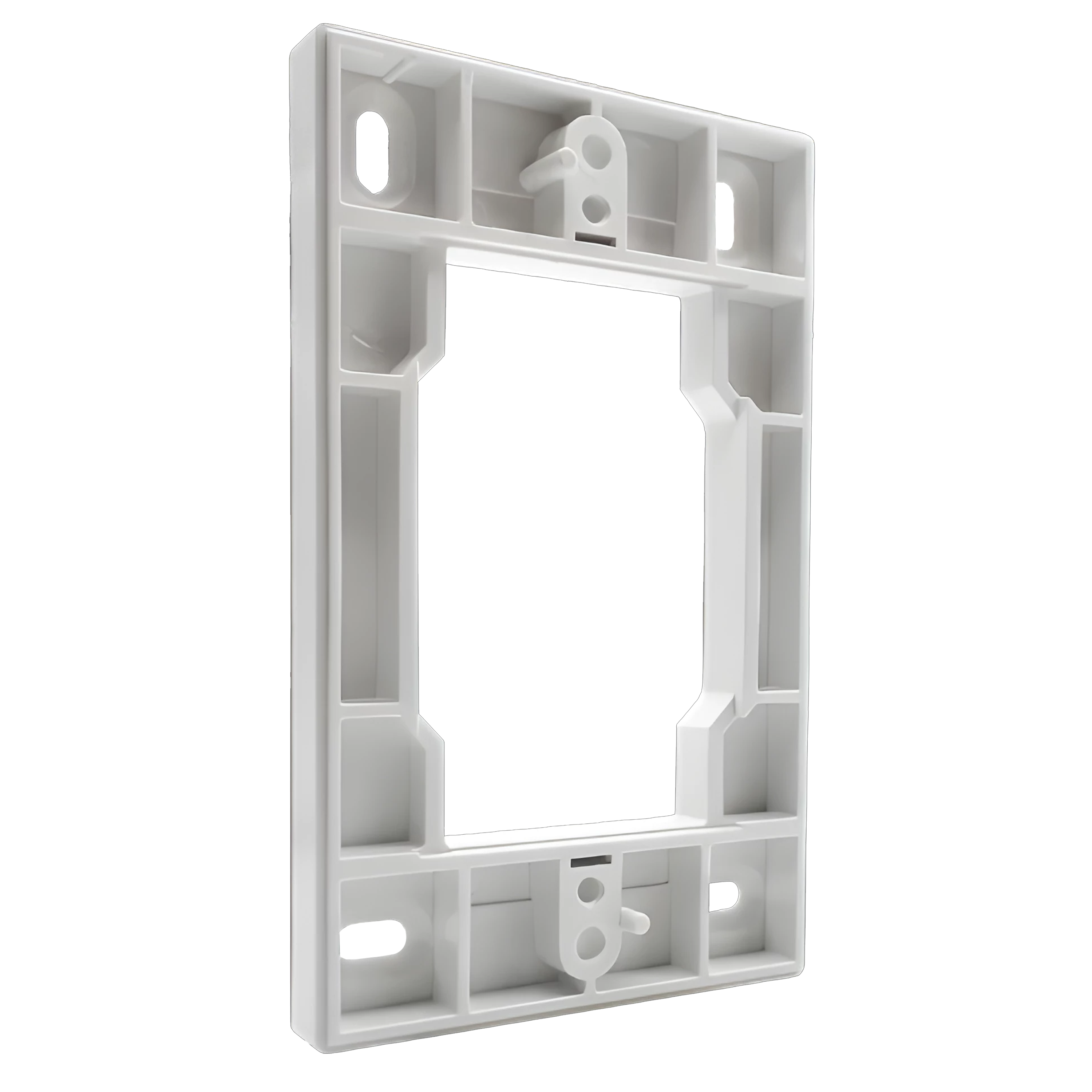

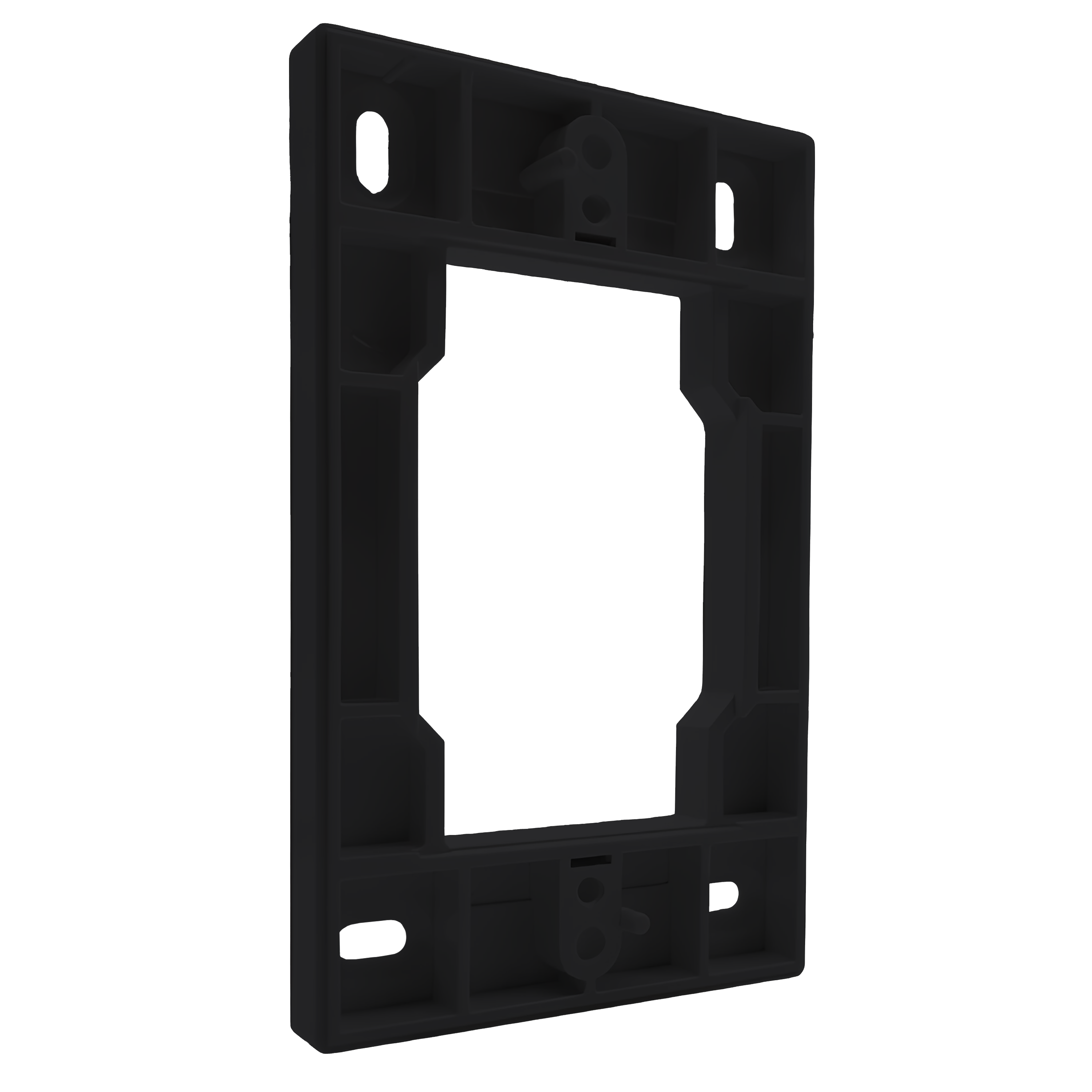

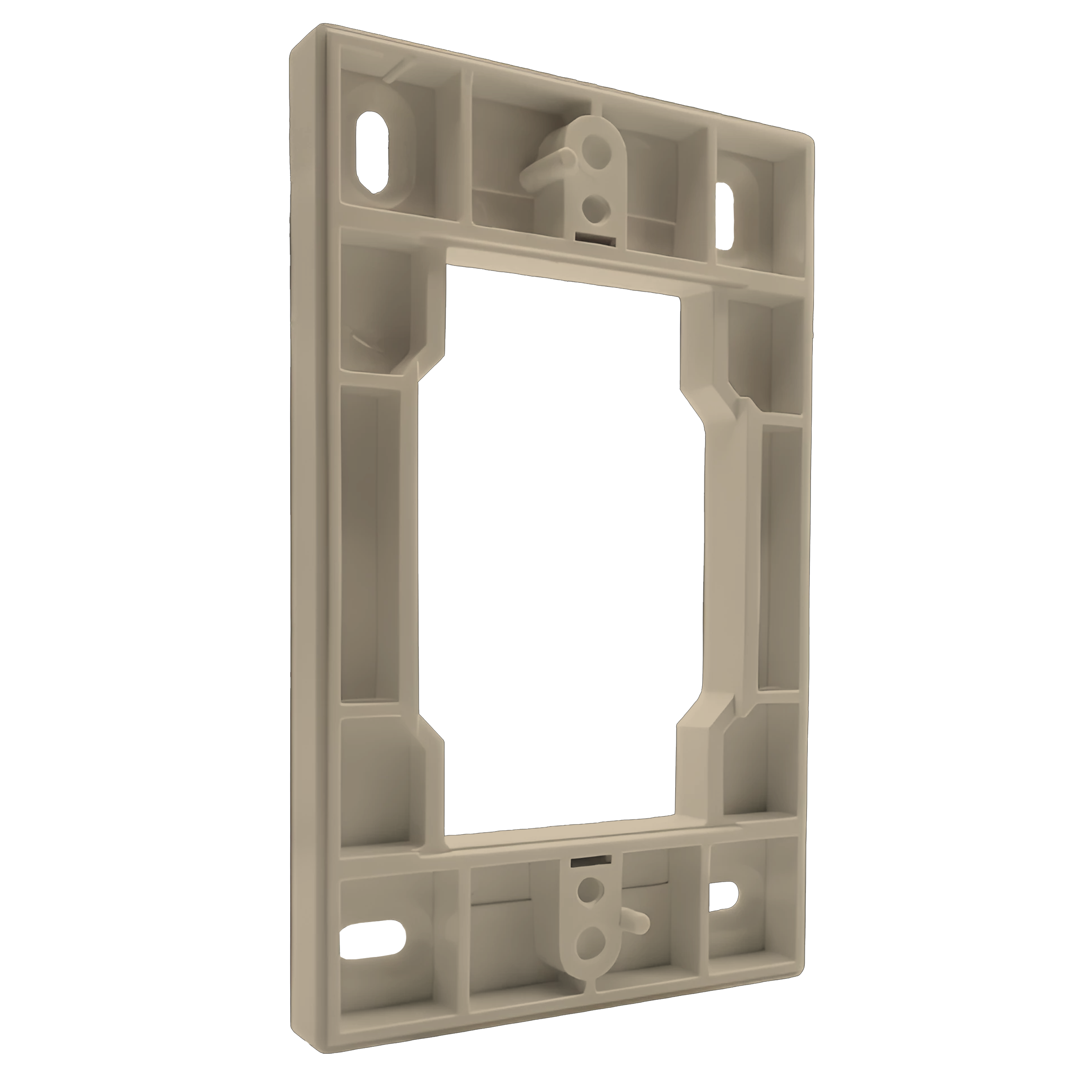

Backplate Plastic
Backplate plastic for RunLessWire's wireless and battery-free decora style light switches
Additional Information
SELF-POWERED by kinetic energy, eliminating the need for wires, batteries, or WiFi - never worry about changing out the batteries, EVER!
5-YEAR WARRANTY: Assembled by hand in the USA and made with premium quality materials.
EASY INSTALLATION: Be your own electrician with this simple DIY hack. Install the receiver at the fixture or the original switch location, neutral wire required. Each kit comes pre-paired and includes all hardware needed.
MOUNT ANYWHERE: Place the switch on any flat surface, replace a wall switch, or use as a remote control.
ECO-FRIENDLY: Save money on materials and electrical costs.
AS SEEN ON Ask this Old House.
RETURN POLICY
If you are not 100% satisfied with your purchase, you can return the product and get a full refund or exchange the product for another one, be it similar or not. You can return a product for up to 30 days from the date you purchased it. Any product you return must be in the same condition you received it and in the original packaging.
WARRANTY
This product is warranted against defects in materials and manufacturing under normal use in accordance with instructions and specifications published by RunLessWire, for a period of five (5) years from the date of purchase by the End User. In the event of a product failure due to materials or workmanship, RunLessWire will repair or replace the defective product. For warranty service, contact RunLessWire for a Return Authorization and return the defective product, shipping prepaid, for prompt repair or replacement.
SHIPPING
RunLessWire ships Monday through Friday excluding holidays. The shipping cut-off time is 2pm MST. Orders placed after 2pm MST will be processed the next business day. Shipping is via USPS First class or Priority mail depending on the quantity. Typical delivery times are 3-5 business days from date of order. Shipping price and delivery time will vary on international orders.
SWITCH SPECS
E9T-S1Axx
Range — 50-150 feet (typical)
Frequency — 902 MHz EnOcean® Protocol
Power Supply — Self-generated when switch is pressed
Buttons — 2 Buttons (1 rocker)
Output Channels — Only limited by number of receivers in range
Dimensions — 2.75(W) x 4.5(H) x 0.62(D) inches
Operating Temperature — -13° to +149°F (- 25° to + 65°C)
Radio Certifications — FCC (United States): SZV-PTM200C 210C or 210U I.C. (Canada): 5713A-PTM200C 210C or 210U *868 Not FCC Approved
Addressing — Factory set unique ID (1 of 4 billion)
5 AMP RECEIVER SPECS (RW9-5C)
Supply Voltage: 100-277 VAC 50/60 Hz
Max Load: 5A all loads, Induction, Fluorescent, LED, Other ; 70A Max Inrush Current ; 1/4HP
RF Communication: 902 MHz EnOcean® Protocol
Transmission Range: 50-150 feet (typical)
Dimensions: 2.61 x 1.73 x 1.09 inches ; (66 x 44 x 28mm)
Operating Temperature: +32º to +122ºF ; (0 to +50ºC)
Storage Temperature: -4° to +176°F ; (-20° to +80°C)
Approvals: UL 60730 (safety) UL 2043 (plenum)
CSA c22.2#14-05 (safety) CE – IEC 60730
FCC ID: SZV-STM300U
IC ID: 5713A-STM300U
5 AMP RECEIVER SPECS (RW9-5C-B)
Range: 50-150 ft. (typical)
Frequency: 902 MHz
Power Supply Input Rating: 100-240 VAC 50/60 Hz
Relay Output: 1 Form A Relay 10A
Max Loads / Contact Ratings: Resistive Load 10A, Tungsten 1000W, Florescent 600W, LED Lamp 200W
Memory: Link up to 5 switches
Operating Temp: -40° - 140° F (-40°-60° C)
Dimensions: 1.1"(L) x 1.6"(W) x 3.3"(H)
Radio Certification: FCC (United States)
INSTALL GUIDE
TECHNICAL DETAILS
Indoors Only: Switches and receiver are not weatherproof and should be used indoors; a receiver or switch installed on an outdoor light will need protection from the elements.
Pre-linked: Switches and receiver are shipped to you already linked together for a quicker installation.
Range: The range of switch is 50-150 feet from the receiver, depending on walls and barriers. Test desired distances before completing installation.
Interference: Multiple units may be used in the same home without interference. Unique radio frequency won’t interfere with other devices.
Power Supply: Receiver requires AC input. Switches are self-powered and require no power supply.
Easy Install: Our small receiver is simply wired between the power and the fixture, and then stored in the light box behind, or at the fixture location. Mount the switch anywhere with industrial tape or screws. Also used to replace outdated, undesired current switches.
COMPARE WIRELESS SWITCH KITS
COMPARE BASIC, 3-WAY, AND 4-WAY KITS
Control 1 circuit with 1 switch
Control 1 circuit with 2 switches
Control 1 circuit with 3 switches
Add to pull-chain, relocate switch
Stairway, hallway, large room
Add a remote to 2 wall switches
1
2
3
1
1
1
Single Rocker
Single Rocker
Single Rocker
5 Amp - handles up to 600W
5 Amp - handles up to 600W
5 Amp - handles up to 600W
COMPARE WIRELESS SWITCH KITS
COMPARE 2 FIXTURE, FAN & LIGHT, AND 3-WAY FAN & LIGHT KITS
Control 2 circuits with 1 switch
Control 2 circuits with 1 dual switch
Control 2 circuits with 2 dual switches
Garage lights, sconces, bathroom lights with 2 fixtures
Fan & Light, 2 lights separately from same switch
Fan & Light + and extra switch
1
1
2
2
2
2
Single Rocker
Dual Rocker
Dual Rocker
5 Amp - handles up to 600W
5 Amp - handles up to 600W
5 Amp - handles up to 600W
COMPARE ON/OFF RECEIVERS
YES
NO - sold separately
5A All Loads, Induction, Fluorescent, LED, Other
20A All Loads, Tungsten, Fluorescent, LED, Other
70 AMP max
160A Max
Handles up to 600W
Handles up to 2400W
100-240VAC
100-277VAC
QUESTIONS & ANSWERS
Will 2 kits work in the same area without interference/crosstalk?
Yes, each unit is assigned a unique digital ID and communicates only with other units specifically associated through a linking process.
How many switches can link to one controller?
25 switches can be linked to one controller.
How many controllers can respond to one switch?
The only limit is the wireless range. Multiple controllers may be linked to each switch.
Does it work with a 3-way switch?
A 3-way switch kit includes 2 wireless switches to which replace any existing wired switches. The controller replaces existing switches and does not work with them.
What is communication distance (range)?
Typically between 50 and 150 ft. Range. The equipment nearly always works reliably within a 50’ radius and can work at longer distances.
Range is affected by:
Proximity to metal – keep away from metal to increase distance, use plastic boxes instead of metal where possible
Obstructions – Wireless signal transmits through most materials at least some distance. Materials in order of range reduction, minimum to maximum: glass, sheetrock, wood, aluminum siding, sheet metal, stucco (w/ wire mesh), brick, concrete
Interference – Some 900MHz wireless microphone systems are known to reduce the reliability of the wireless switches. There are no other known sources of interference.
What is the typical life expectancy of the sensors and relay?
The products use no batteries and include an integrated magnetic generator. They are designed with a 20+ year intended lifespan. They have a 5 year warranty.
How do I link another switch to an existing controller?
Confirm the controller has power and the Status LED is Green (Output ON) or Red (Output OFF). Hold the MENU button until a click is heard – about 5 seconds. Buttons may be hidden under a sticker.
Click the top button of the switch 3 times. The status LED will pause GREEN for 3 seconds indicating that the switch ID has been added to the controller’s memory. If status LED pauses RED, the switch has been removed from memory; click the switch 3 more times to add it back.
Wait 30 seconds until clicking / blinking stops. Operate switch.
Does the wireless signal interfere with other wireless networks such as WiFi, home security, cellular or other wireless devices so that it does not function properly?
RunLessWire switches and controllers communicate using the 902MHz frequency. It will not interfere with Wifi (2.4GHz or 5.8GHz) or most other wireless devices.
Each unit is assigned a unique digital ID (one of 4 billion) and there cannot be cross talk, even though they transmit on the same frequency.
How do you measure Available Watts?
Watts = Amps x Voltage. So, for example, with the 5 amp RLW controller: 5A x 120V = 600 Available Watts
How can I contact Customer Support?
Email: support@RunLessWire.com
Phone: 866.600.2111
9am-5pm MST, M-F
Troubleshooting
The controller does not respond to the wireless switch:
1. Confirm the controller is wired correctly and functional:
-The status light on the controller should be illuminated. Green means the output should be ON, Red means the output should be OFF. No status light indicates that power is not on, wiring is incorrect, or Controller has been damaged.
-Press the “Select” or “Test” button to toggle the controller output. Subsequent presses will cycle between ON and OFF. If the status light changes color and the light doesn’t respond there may be a wiring problem. If the relay doesn’t click, the relay may be damaged from an overload condition.
2. Confirm the switch is functional:
-Click the switch and confirm that the controller status light flickers. Each time the switch transmits, whether it is linked or not, the status light should flicker briefly. If it does not flicker, either the switch isn’t transmitting or the controller isn’t receiving.
-Link the switch to the controller. Hold the “Menu” button for about 5 seconds until the controller clicks, then release. While the controller is clicking, press one button on the switch 3 times. The controller status light will pause GREEN when the switch is added to the controller memory. The status light will pause RED when the switch is removed from the memory. If this happened, click the switch 3 more times to add it to the memory. If clicking the switch doesn’t not link, the switch may be damaged. If a second switch is available and works, then the first switch can be confirmed defective. If not, contact RunLessWire for support and warranty service if applicable.
